POS Flow

Actors & Components

1. Customer – Holds a voucher (code + PIN) and is paying at the till.
2. Cashier – Operates the POS.
3. POS Terminal – The device/app used to capture payment.
4. SureGifts Server – Middleware that processes voucher redemptions.
5. Voucher Service – System of record for voucher validity and balance.

---

High-Level Idea

At POS, there is no pre-check/balance inquiry. The POS attempts to redeem the voucher for the exact purchase amount. The response tells us if the redemption succeeded or failed.

---

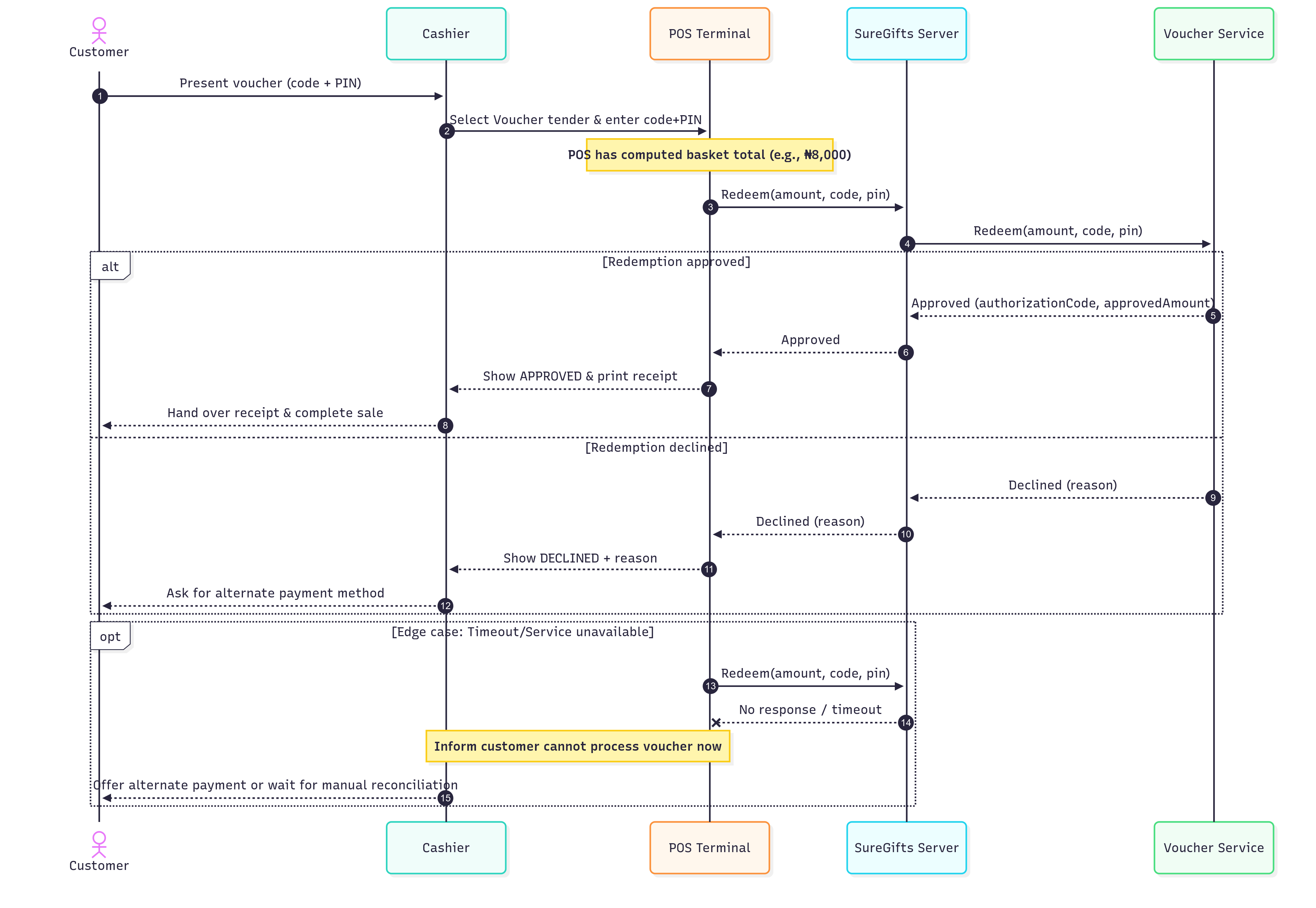

Step-by-Step Flow

1. Start Sale

• Cashier scans items → POS computes total (e.g., ₦8,000).
• Customer selects Voucher as payment method.

2. Capture Voucher

• POS prompts for Voucher Code and PIN (typed or scanned).
• POS includes the transaction amount in the request.

3. Redeem (Single Call)

• POS → SureGifts Server → Voucher Service with payload:

  • voucherCode, pin
  • amount (e.g., 8000)

4. Voucher Service Decision

• Success → Voucher is valid and covers the requested amount. It immediately deducts the value and returns Redemption OK with:

  • authorizationCode
  • approvedAmount

• Failure → Returns Redemption Failed with a reason code

5. POS Handling & Customer Messaging

• If Success:

  • POS marks voucher tender as approved.
  • Prints receipt including authorizationCode, last 4 digits of voucher, date/time, and amount.
  • Transaction is completed.

• If Failure:

  • POS displays specific error message.
  • Cashier requests an alternate payment method (card/cash/another voucher).

6. Edge Case – Timeout/Unavailable

• If the POS request times out or SureGifts is unavailable:

  • The transaction is not confirmed.
  • Cashier informs customer the voucher could not be processed at this time.
  • Customer pays using another method or waits for manual reconciliation later.
